Ultrasound

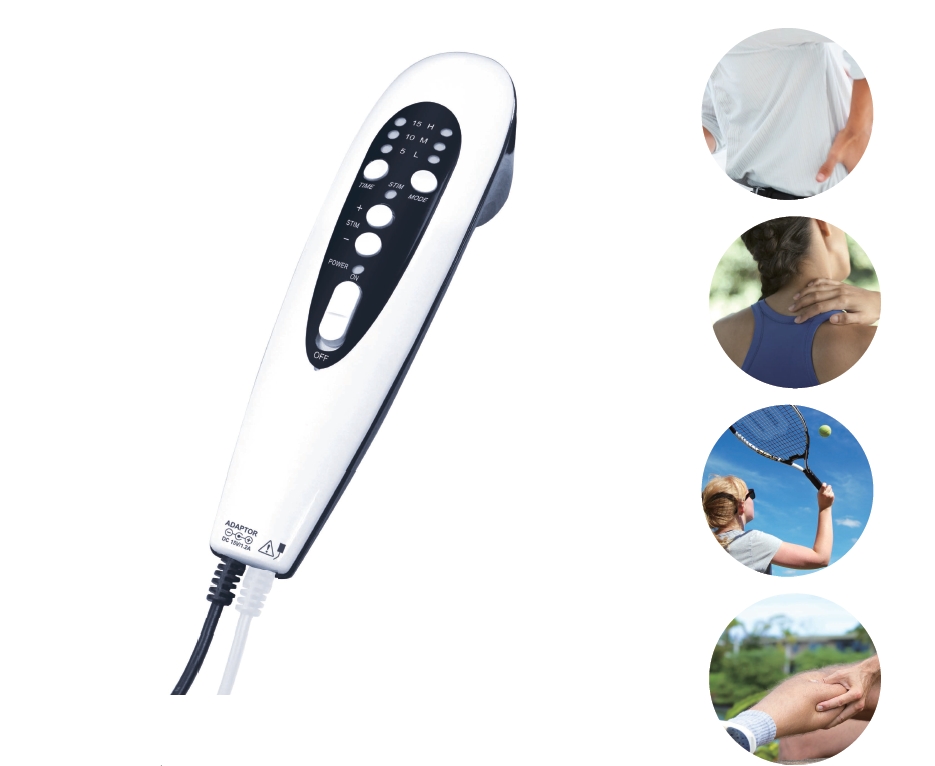

UltraRelief 1.0 CT1032

The CT1032 combines the two most proven modalities, ultrasound and TENS technology for pain relief into one compact sleek device. Deep heat from the therapeutic ultrasound and TENS therapy can be used simultaneously to help patients treat chronic and acute muscular pain. Our new innovative design features an increased duty cycle of 50% with three easy to use mode presets, plus 30 mA of TENS therapy.


Ÿ   Combines therapeutic ultrasound and TENS for patients needing stronger therapy

Ÿ   Ergonomically designed 4 cm2 aluminum sound head

Ÿ   Features 1 MHz frequency with 3 power levels and 30 mA of TENS therapy for deep therapeutic treatment

Ÿ   Beam Non uniformity Ratio (BNR) 5.0 max

Ÿ   Small, unique design that is easy to operate and portable

Ÿ   Three treatment times (5 min, 10 min or 15 min)

Ÿ   Automatic power shutoff after 10 minutes

Ÿ   Treatment timer 5, 10 and 15 minutes

Ÿ   Temperature protection function

Ÿ   Load detection system


Working frequency1MHZ± 10%
Modulation duty cycleL(5%), M(50%), H(100%)
Material of Applicator:Aluminum
Effective radiation area4.0cm²±20%
Max. Effective Intensity: 1.6 W/ cm²± 20% (Modulation duty cycle at 100%)
Working timeAdjustable 5mins. 10mins. 15mins.
Preheat Time:3-5 minutes
CEYes
Medical deviceYes
