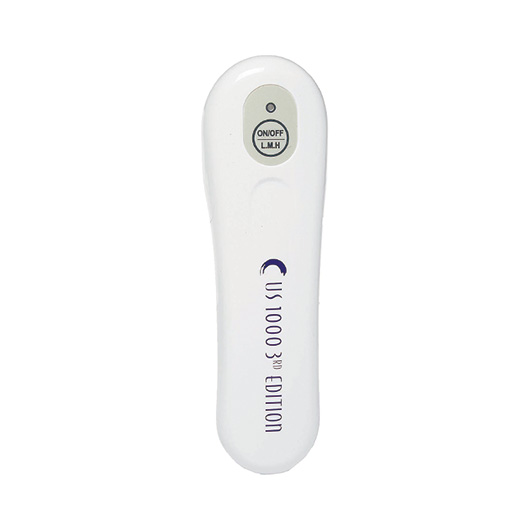

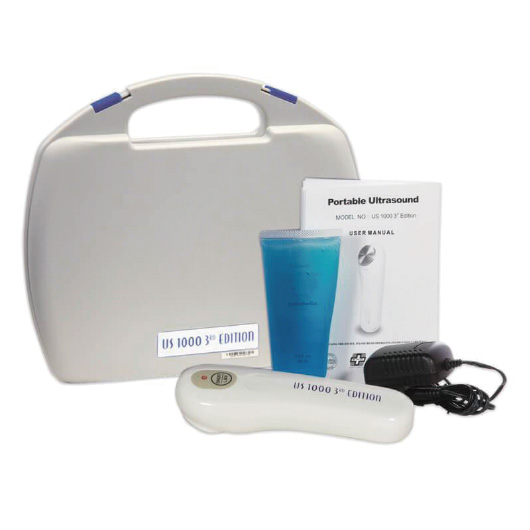

Portable Ultrasound

US1000 3rd Edition

The US 1000 3rd Edition is a portable ultrasound device that treats pain, muscle spasms, and stiffness by delivering deep sound waves into tissues. Unlike electrical therapies, it uses piezoelectric technology to convert energy into gentle vibrations, warming tissues and boosting blood flow—adjustable via 3 power settings.


Treatments (5–10 minutes) are tailored to each condition, with gel ensuring efficient energy transfer. Designed for home use, it replicates professional-grade therapy without medication, offering drug-free relief similar to chiropractic or physical therapy tools.



Ÿ   4 cm² Treatment Area

Ÿ   3 Power Levels

Ÿ   Collimated Ultrasound Beam

Ÿ   Safety Protections



Power SourceAC Adapter - 100-240 Volts
Frequency1.0 MHz ± 10%
Output ModePulse
Output Intensity1.6W/cm² (Low), 2.6W/cm² (Medium), 4.6W/cm² (High)
Duty Cycle8% (Low), 14% (Medium), 29% (High)
Repetition Rate150Hz ± 10%
Working Time30 Minutes
 Material of ApplicatorAluminum
 Beam TypeCollimated
